Fluxer Options
Foam Fluxer
Stainless steel tank of 5 ltrs capacity with porous candle
External compressed air driven
Air knife to blow off excess flux back to the tank
Spray Fluxer
Modular design - Spray, Control & Infeed Modules
Auto spray as per length & width of board
Drawout Fluxer Tank
(only for finger conveyor model)
Foam Fluxer tank is mounted on drawout sliding base
Easy access to nozzle and porous candle for maintenance
Preheater Options
Two Hot Air Convection Preheaters
Total Length of 1000 mm and 5KW each High reliable open coil heaters with blower
Twin output impeller housing for better
Three Hot Air Convection Preheaters
Total Length of 1200 mm and 4KW each Highly reliable open coil heaters with blower
Twin output impeller housing for better efficiency

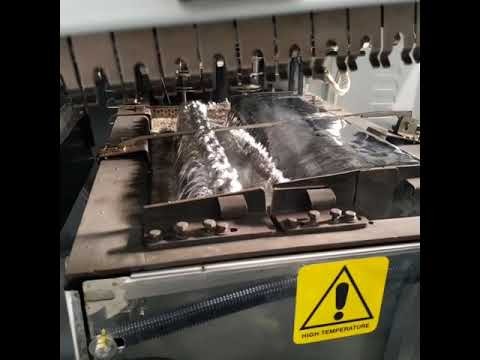

Solder Pot Options
150 Kg Lead Free / 170 Kg Leaded Pot
Available in SS, Nitrided SS or Titanium
Three Cartridge internal heaters for better efficiency
AC pump motor with speed control for uniform & stable wave height
