Foam Fluxer & Preheater

Description

Country of Origin Made in India

Warranty one years

Brand Ravindra Electronics

Machine Type Semi-Automatic

Minimum Order Quantity 1

Adjustable Temperature Yes

Automation Grade Semi-Automatic

Temperature 90-100 C

Model Name/Number FFP-01

I Deal In New Only

Output Current 0-100 A

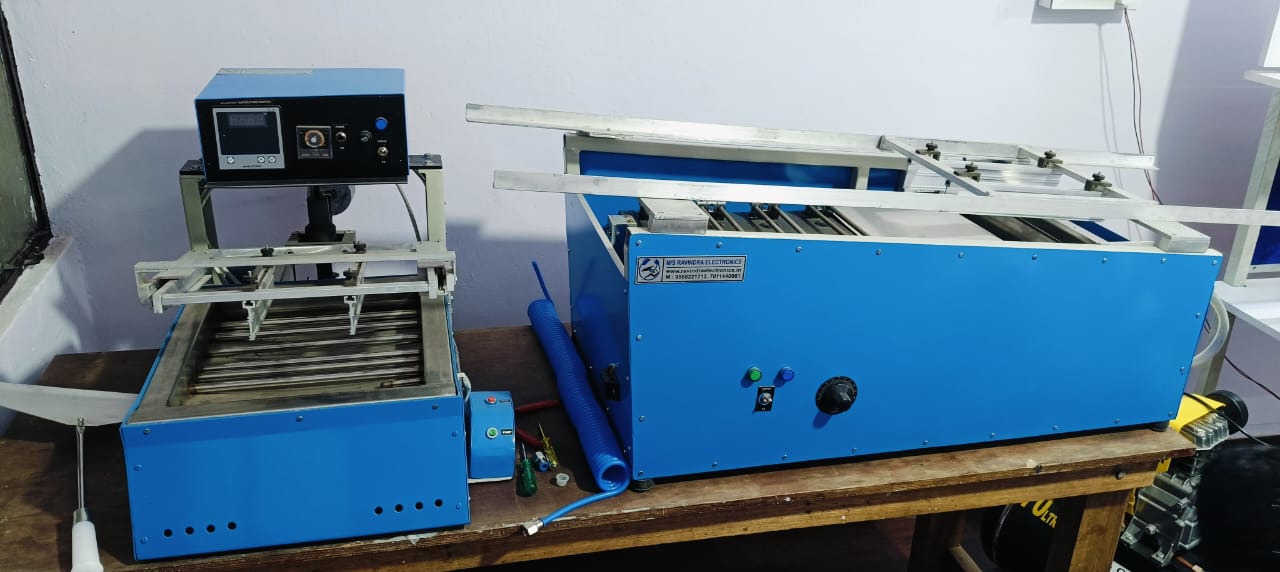

Foam-Fluxer & Preheating Unit

This piece of equipment is used for fluxing and activating the fluxed PCB Assembly and preparing it for the soldering opertion.lt incorporates the following stages:

FORM-FlUXER; This generates a stable wave of foam (microscopic bubbles of flux) when air* is diffused and forced through the liquid-flux by a special device. The PCB assembly is passed over the foam-wave and the flux is applied on the lower side of the PCB.

AlR-KINFE : This is used to level off the flux applied by the foam -fluxer and blows off excess solvent from the flux on the PCB.

PRE-HEATER: This is used to activate the flux and bring the whole PCB assembly to a uniform temperature (around 90-100°C) to avoid thermal shock/stress when the assembly undergoes the solgering operation (control by Digital Temperature controler).

TRANSPORTATION: The PCB is conveyed through the above stages on a PCB carrier (2 Nos. Supplied with the equipment) moving on a pair of conveyor rail (manual movement). The carrier can then be transfered to the soldering station without removing the PCB form it.
