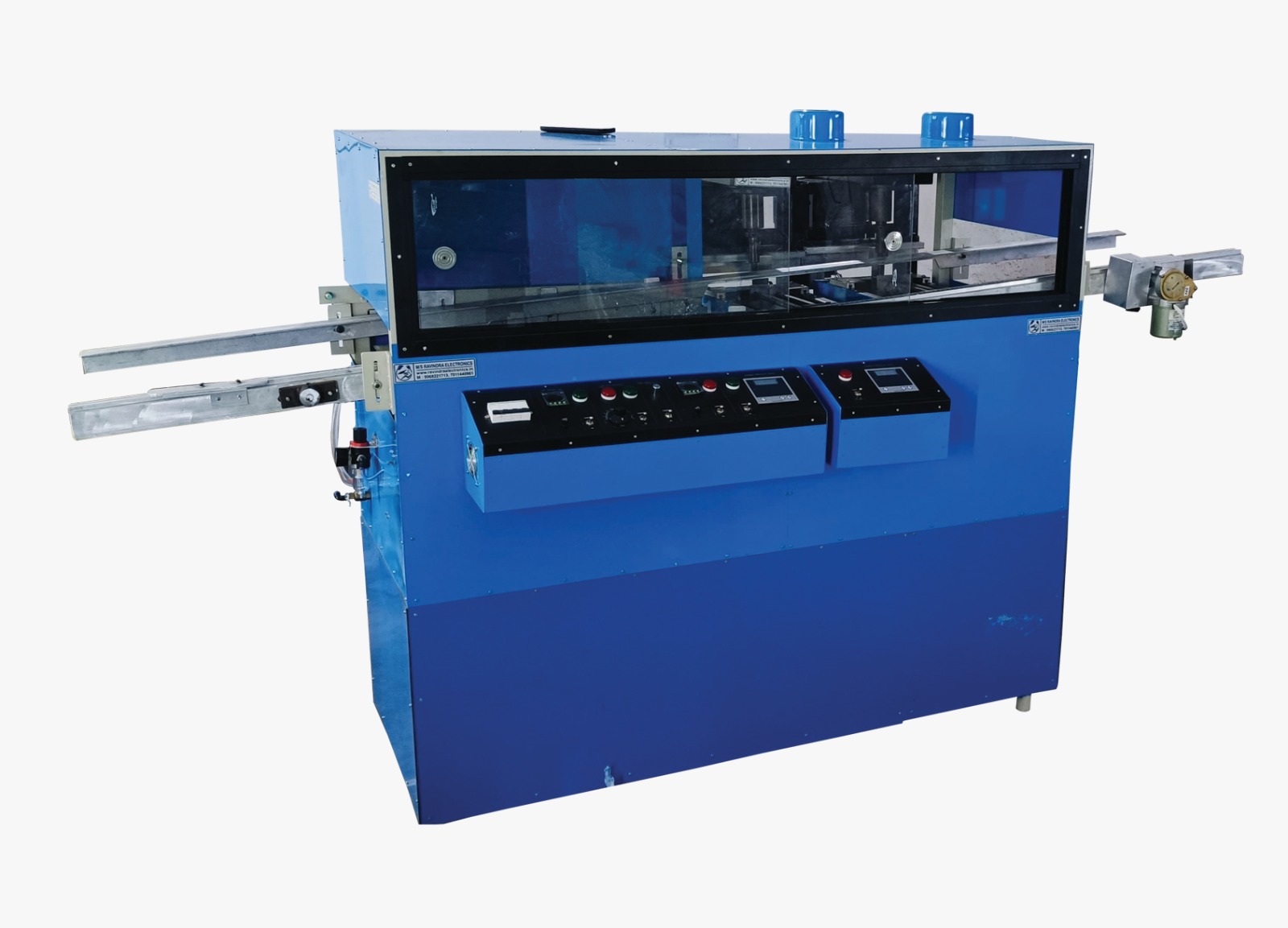

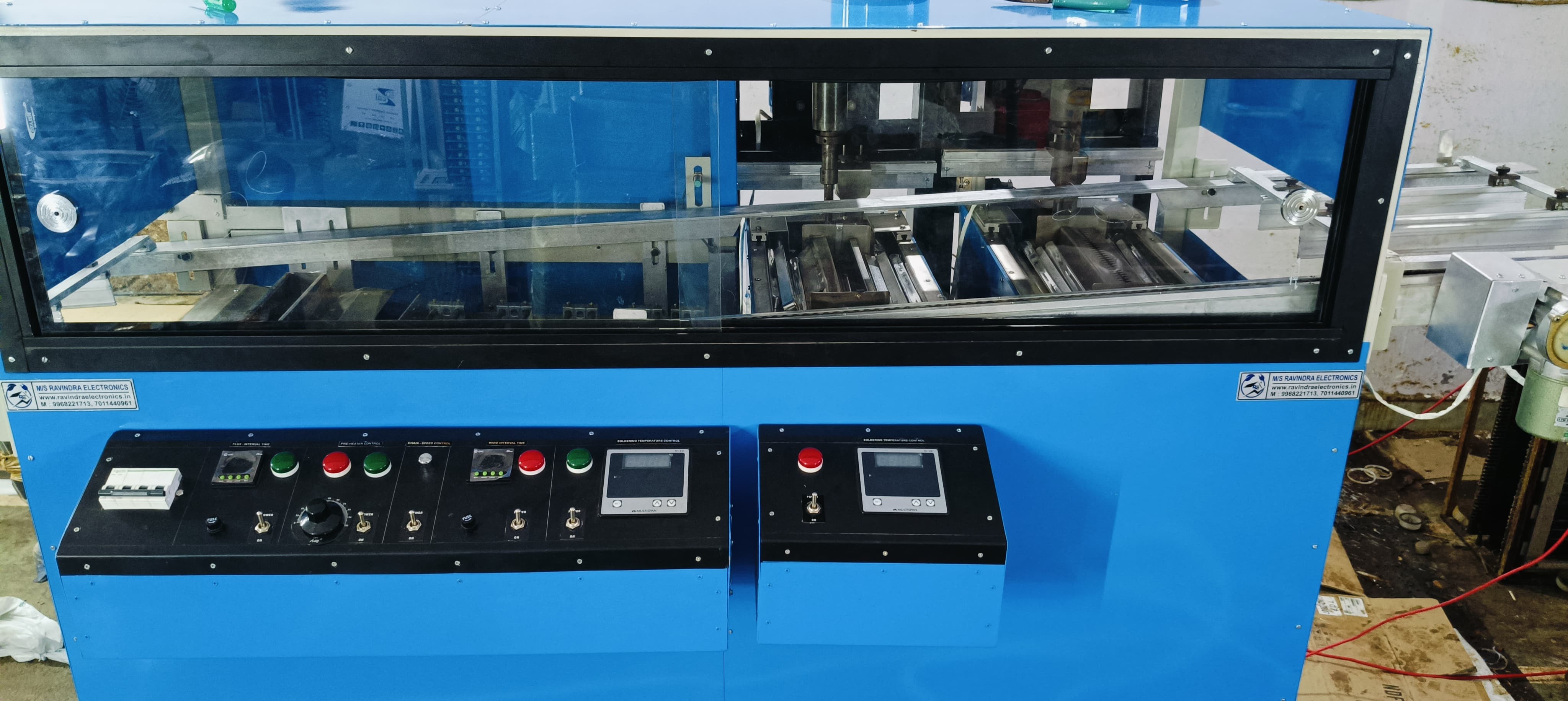

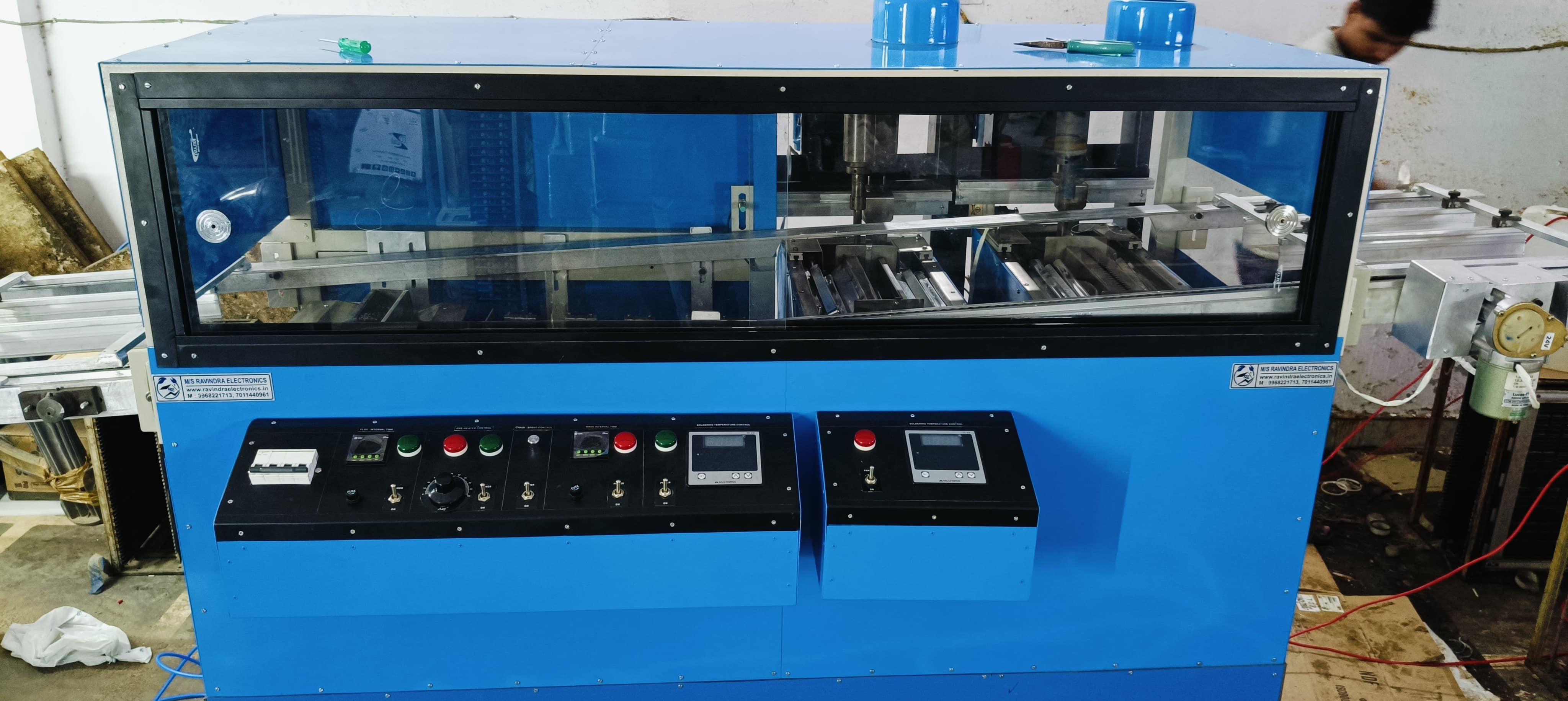

Carrier Type Wave Soldering Machine

Description

Wave soldering systems Silent Features Stainless - Steel Foam Flux bath. Stainless - Steel long-life Foaming cartridge High efficiency convecto-Radiative pre-heater Extra long - life chain conveyor (6 mm, min section thickness) Submerged tube - in - tube sealed cartridge heaters Slide - out solder bath for easy cleaning. Gate-controlled wave-height control on finger tips. Solder drain-tap fitted wave pot. Digital PID controller for solder bath. Complete edge guided and finger type PCB holding rails. Natural Induced-draft exhaust. Wave width150mm, 200mm 310mm 360mm Solder Capacity 85Kg. 110Kg 140Kg Power Capacity 5.5kw 7.5kw 8.0kw
