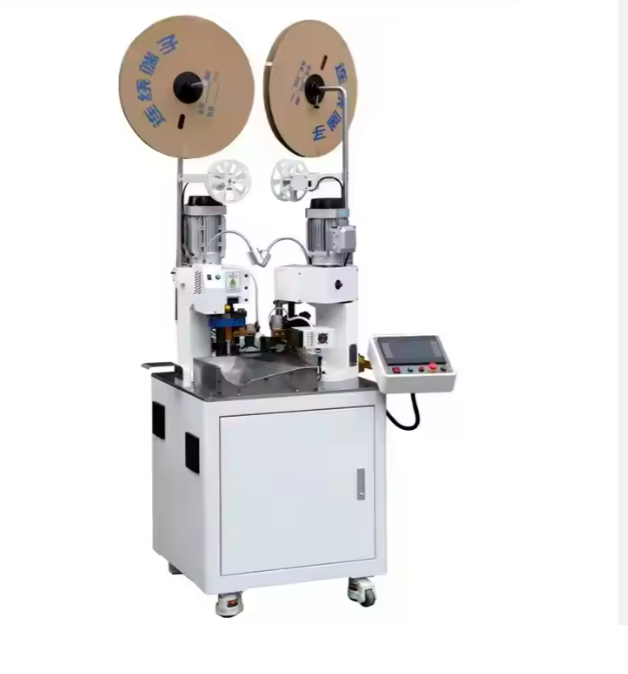

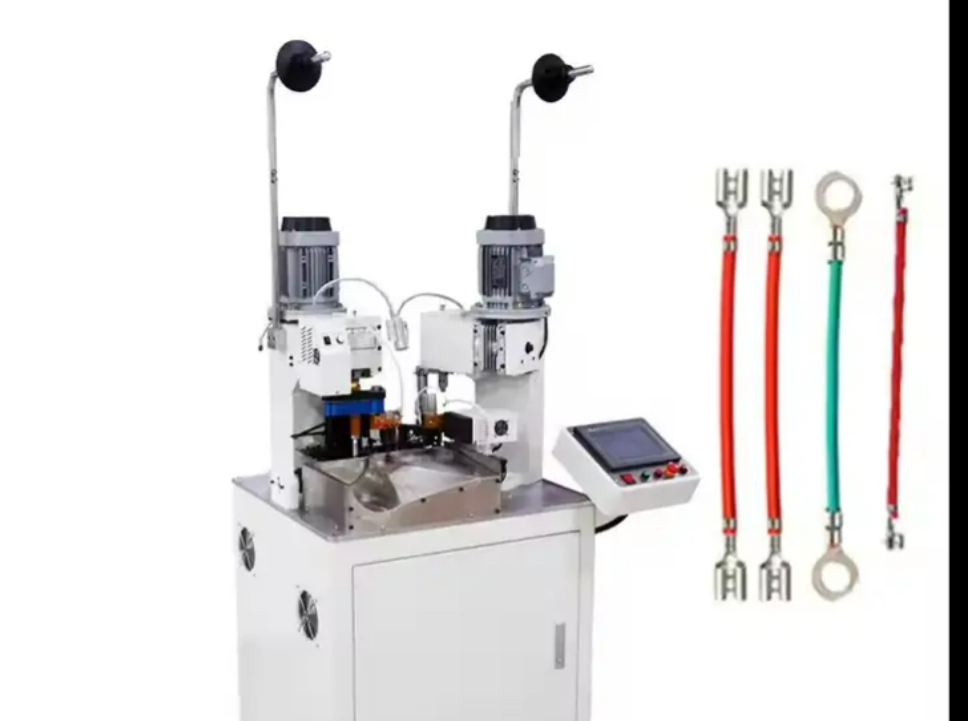

Type : Machine for automatic molex crimping
Power : AC220V 50 / 60HZ ( single phase )

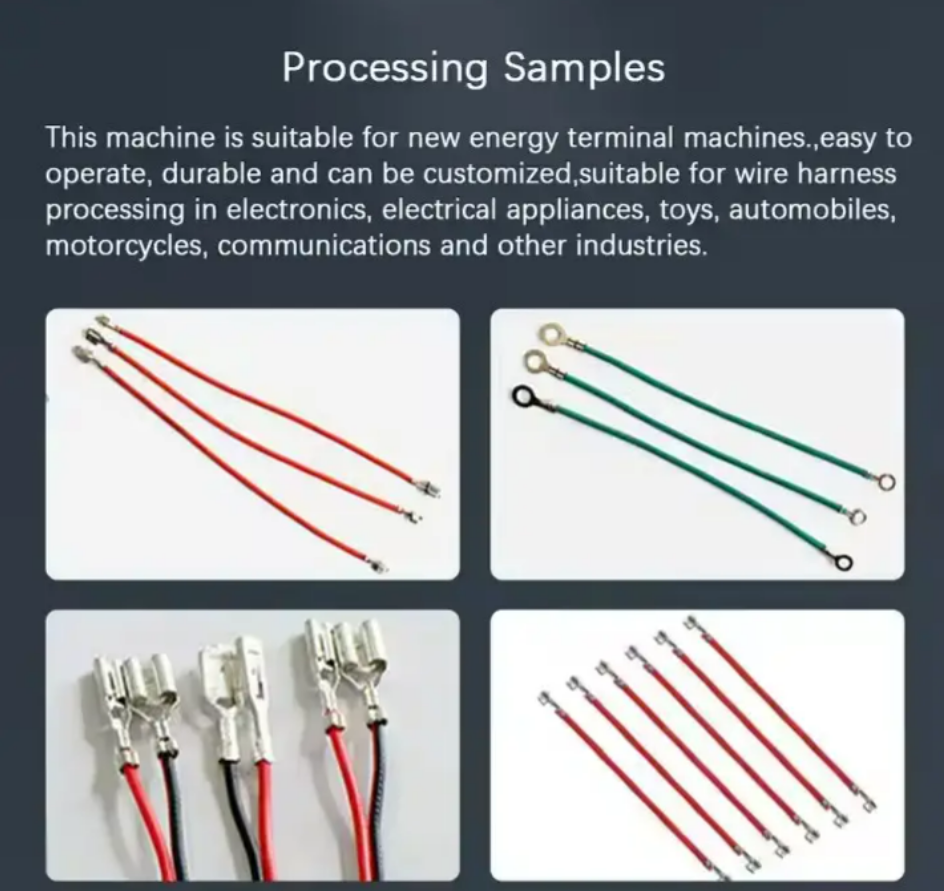

Function : Wire cutting, both side stripping, single/two side full/half stripping, single crimping/both ends crimping.
Capacity : 3000pcs/h (within 300mm length)
Wire Processing range : AWG # 32 - AWG # 14
Cutting length : 8mm-9999mm.
stripping length : 0.1mm-10mm
Air pressure : 0.5Mpa(5kgf/cm) About 200NL/Min
Detection device : It will alarm downtime when appears lack of abnormal, insufficient air pressure.
Pressure capacity : 2T(custom made)
Machine weight :About 400kg
stroke : 30mm
