Product Details:
Minimum Order Quantity 1 Unit
Power Source Electric
Design Standard
Material PVC Wire Cutting Stripping Machine For Making The Wire Harness
Wire Type PVC & Teflon Etc
Capacity 14000-16000 pcs/Hour
Automation Grade Automatic
Cutting Accuracy +- 1MM Over 1000MM

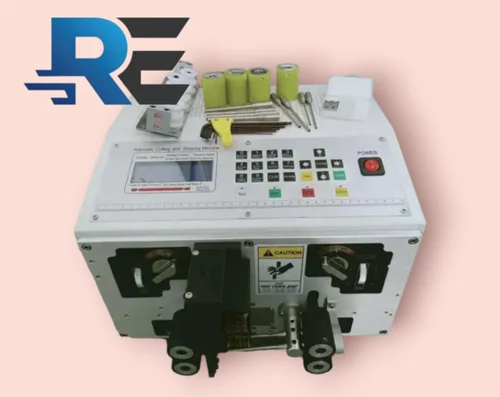

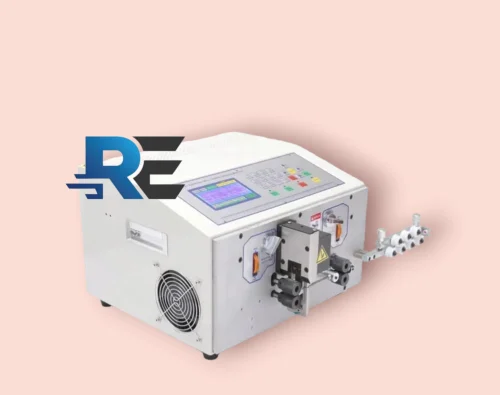

1)Automatic stripper for electronic wire, silicon wire, Teflon wire, glass fiber wire, isolation wire etc.
2)automatic cutting,stripping, half stripping, middle stripping, twisting special functions.
3)at the same time processing two wires, greatly improve the output, can instantly transform the size and size of wire, easy operation. If twisting device is equipped, special functions of torsion can be realized.
Machine size 450*450*360mm
weight 35kg
Cutting length 15mm-9999mm
Stripping Length Front end max 100mm,Rear end max 30mm(more than that need half strip)
Applicable line diameter AWG#16-AWG#32
Cutting tolerance adjustable
supply voltage AC110V--220V( 50/60HZ)
Stripping Mode Half stripping, Front and rear stripping,Tri-section stripping
