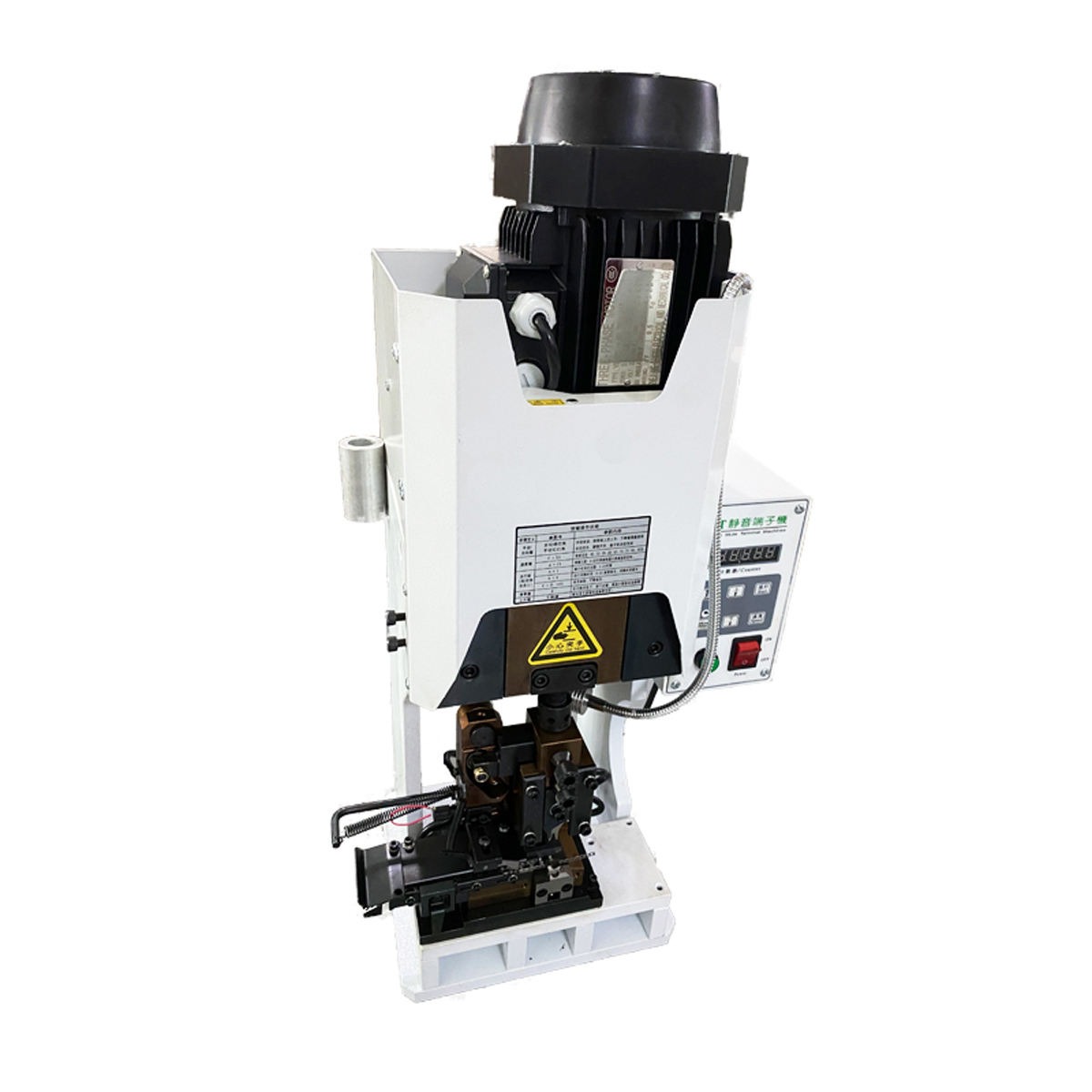

Terminal Machine 2-Tons Terminal Crimping Machine

Description

Brand Ravindra Electronics

Model Name/Number RE -I-2T

power Supply 110,220v(50-60 HZ )

Country of Origin Made in India

Machine Type wire crimping machine

Warranty 1 Year on-site

Motor Power 0.75kw

Item Weight Kg 42kg

Frequency Hz 50HZ

Crimping Stroke Mm 40mm

Capacity(T) 2 Ton

Automation Grade Semi Automatic

Size/Dimension 310 x 260 x 640 mm

Machine Structure Vertical

Power Source Electric

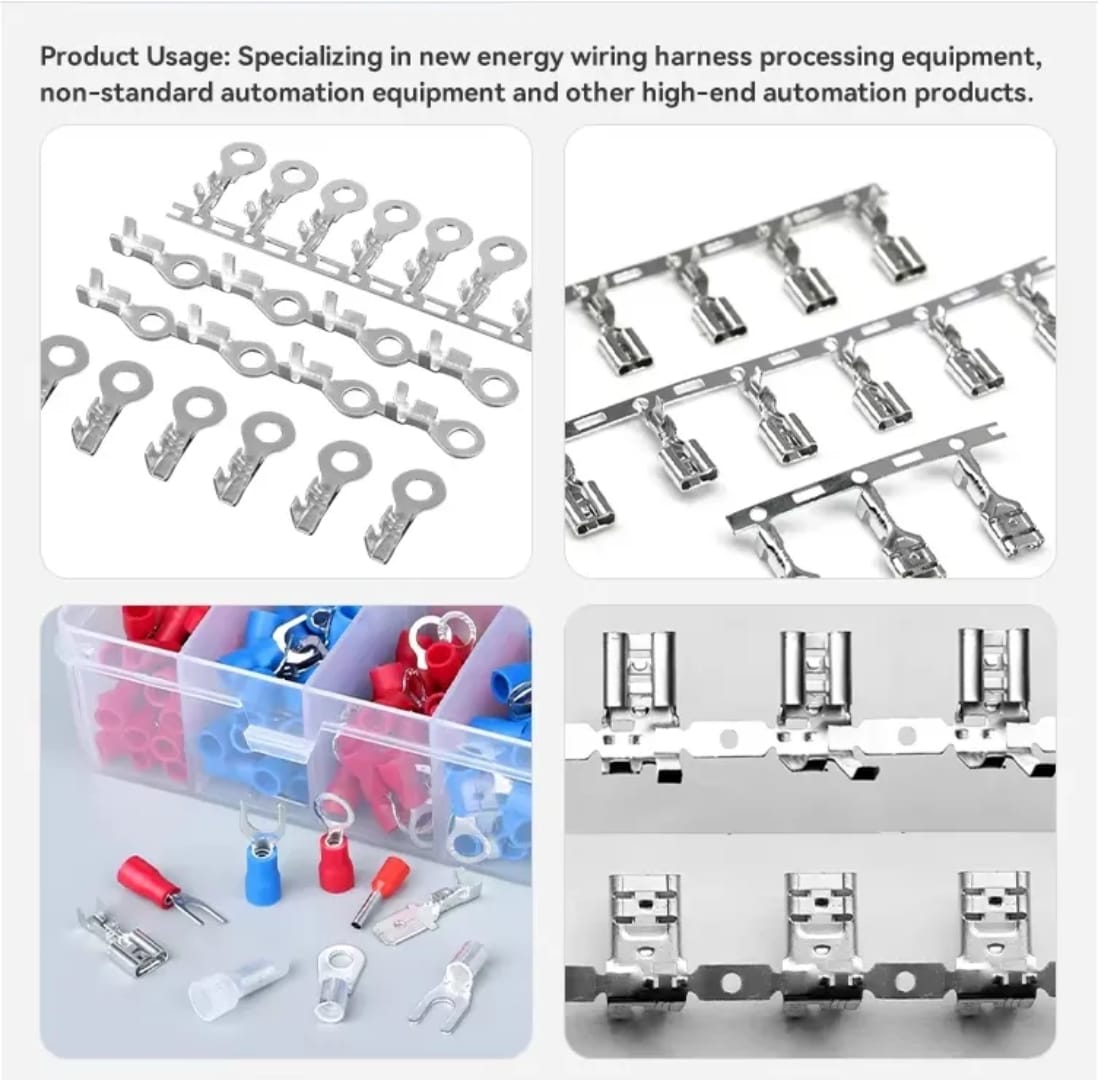

Usage/Application Wide range of industrial terminals

Press Capacity upto 2 Tons

With the inverter-driven,it makes the machine without the mechanized operation delay and failure from the traditional clutch,and simplify internal mechanical parts,reduce the wearing or replacement.Large torque,small vibration,high stability,quiet working.Ensure the right amount of force when crimping the terminals to wires.

Can work with a variety of straight,horizontal molds,various terminals can be crimped in one machine by changing the molds.

There is the upward and downward punch on the panel,do not need to shake the spindle with a wrench when debugging the mold.

You can adjust the machine working range 1-20times,the working interval time range 0-20min.
