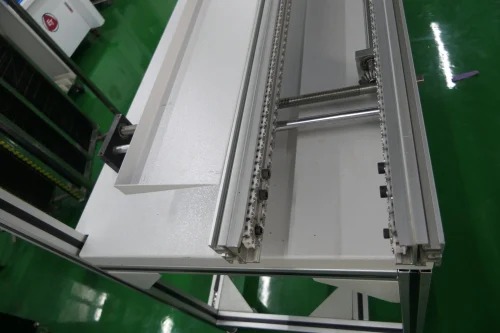

A PCB system allows you to stop conveyed objects (via a stopper) while the chain underneath continues to run continuously. Conveying resumes once the stopper is removed. Depending on the application, the conveyor can move up and down or left to right, with auto pallet movement at both ends.
Application
Rise and Fall Circle Type Automatic Assembly Line
Led Street Light and Panel Light Assembly
LED TV Assembly Line
Cooler Assembly Line/ AC /Washing M/C Fridge
Specification
Conveyor L X W X H can customised as per Product.
Conveyor Structure made by 40 X 40 Alu. Profile anodized.
100 X 120 special Alu profile for Chain Guide.
1-2/2″ pitch Free Flow Triple Speed Chain for Pallet movement.
20 mm Thk. Bakelite Pallet.
Pallet Transfer System at both end.
Top Structure for Lighting and Instruction display Board Acrylic Blue Colour.
Tube Lights, Power Socket and Pneumatic Line As per Customer Requirement or to be installed at your end.
